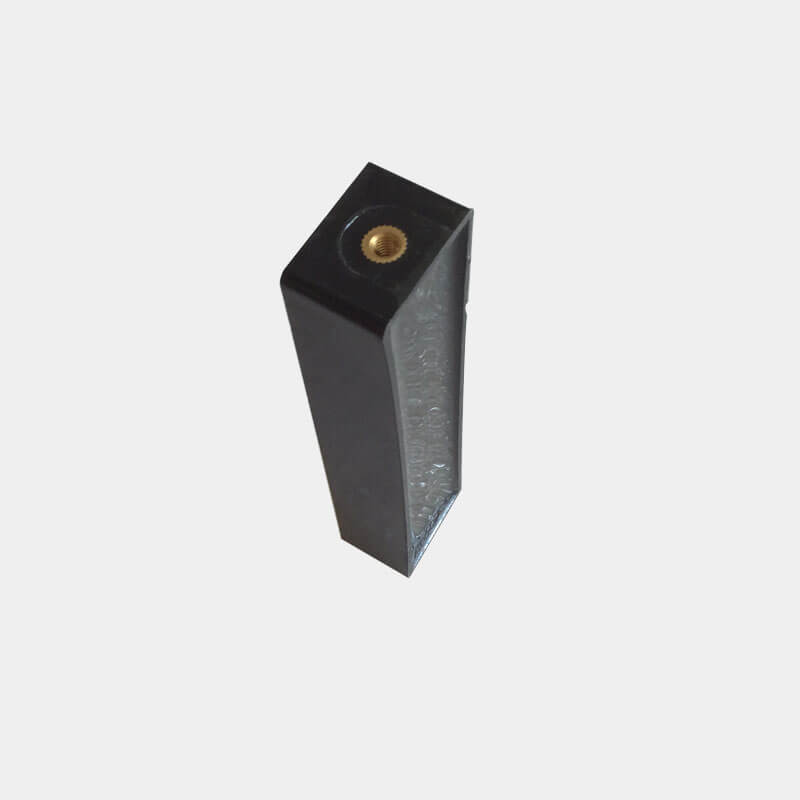

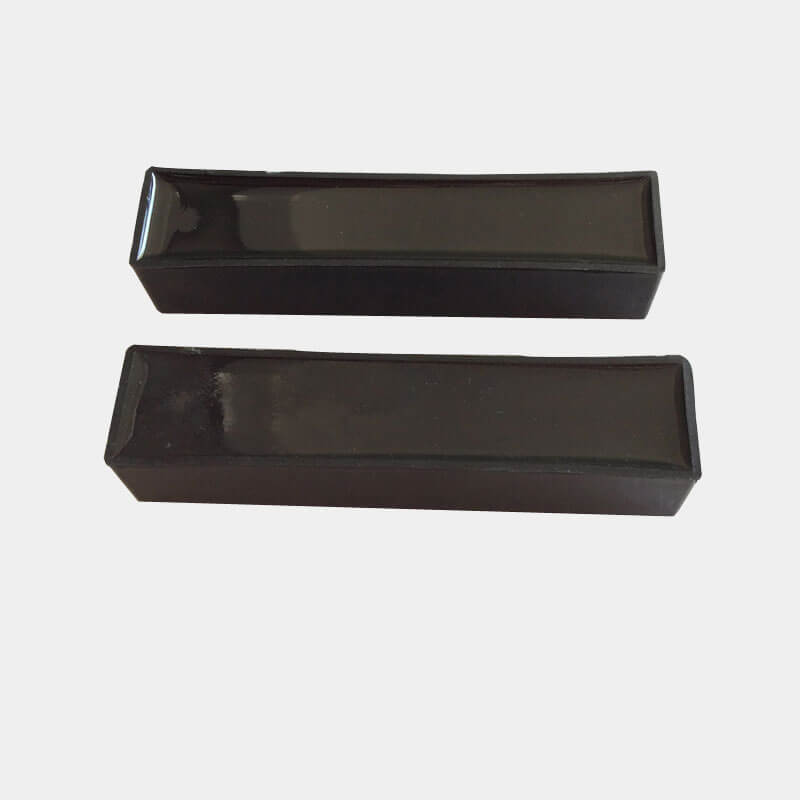

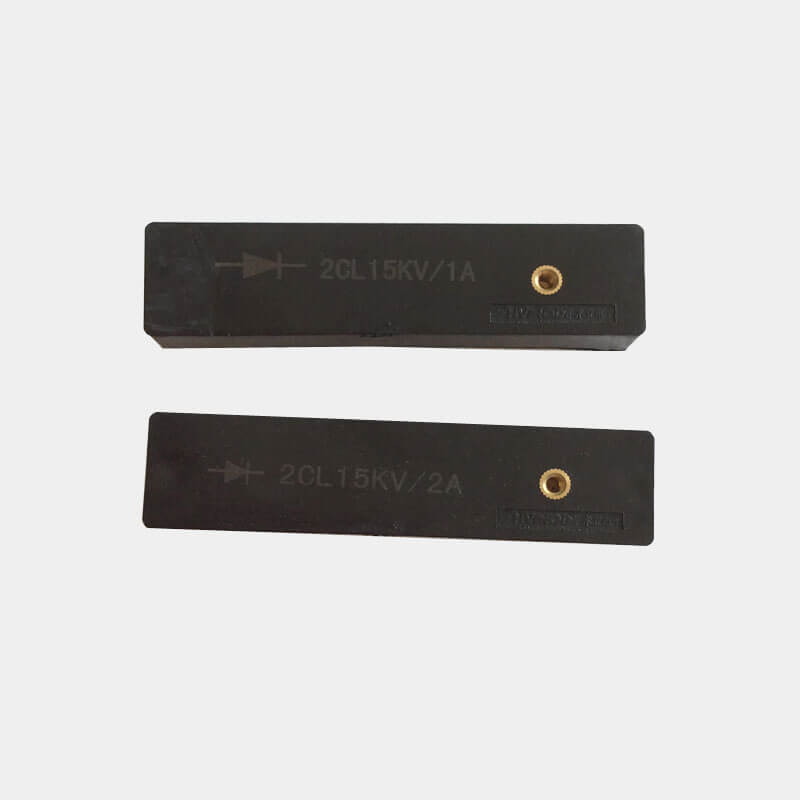

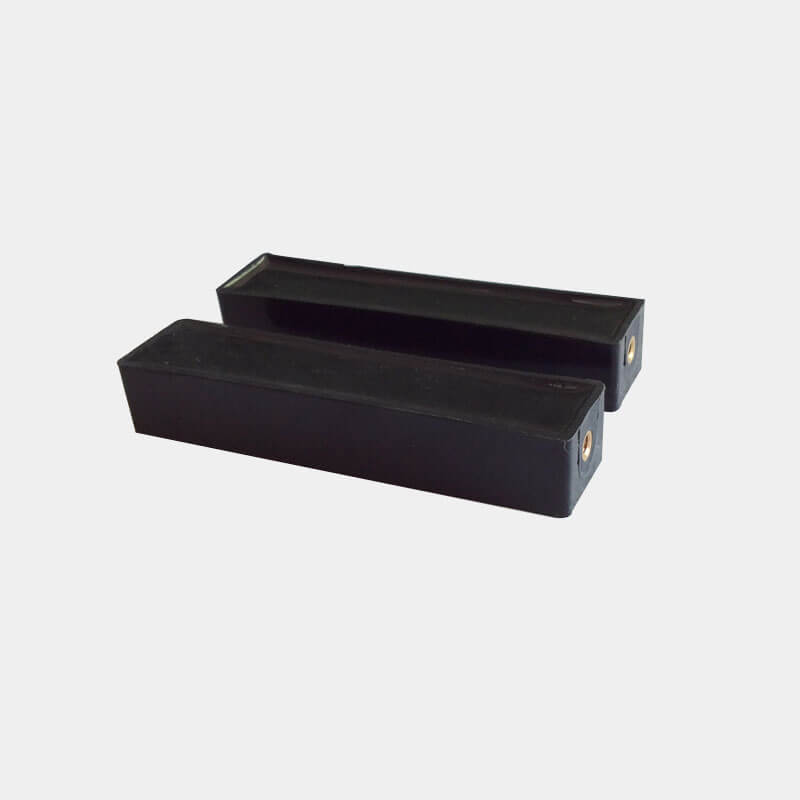

15KV 1A High Voltage Microwave Diode

  • Model:2CL15KV1A
  • Type:Rectifier stack
  • Materials:Silicon
  • Reverse surge voltage Vrrm:15KV
  • Working temperature:Normal temperature
  • Product name:15KV 1A High Voltage Microwave Diode

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Features of 15KV 1A High Voltage Microwave Diode:

15KV 1A High Voltage Microwave Diode
1. Adopt newest technique for tube core.
2. Low current leackage, low power, and high reliablility
3. Have high voltage rectifier, isolation, and protection function.
The high voltage microwave diode is used to microwave drying, heating and sterilizing equipment.


Parameters of 15KV 1A High Voltage Microwave Diode:

Model Repetitive peak reverse voltage VRRM KV Average forward rectified current IF (AC)A Maximum forward surge current IFSM A Maximum forward peak voltage VFM V Normal temperature reverse DC current IRRM1UA Dimension:LxWxH mm
2CL15KV1A 15 1.0 50 12 5 90x25x18
