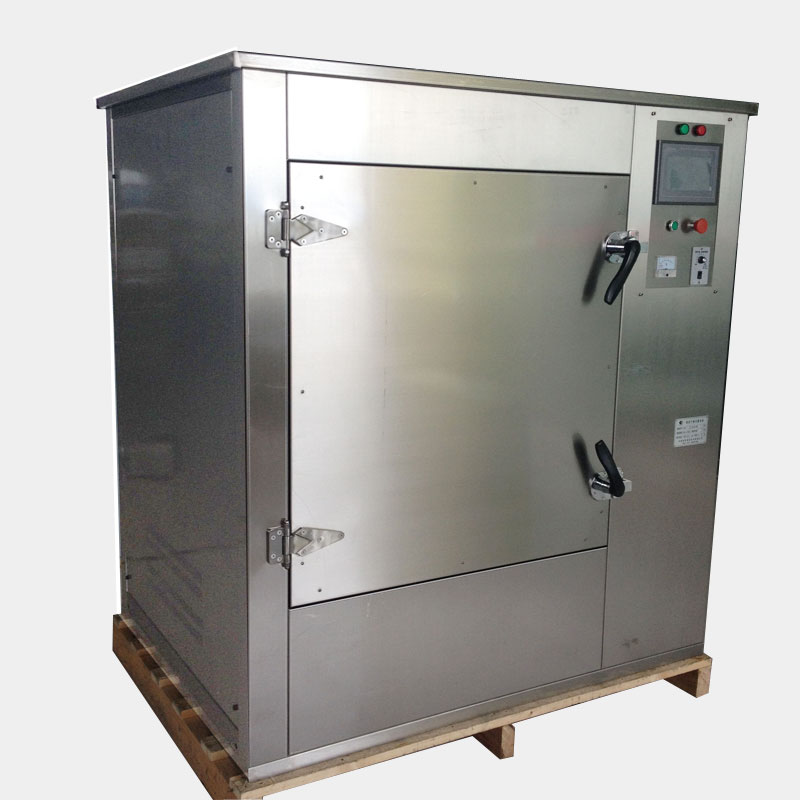

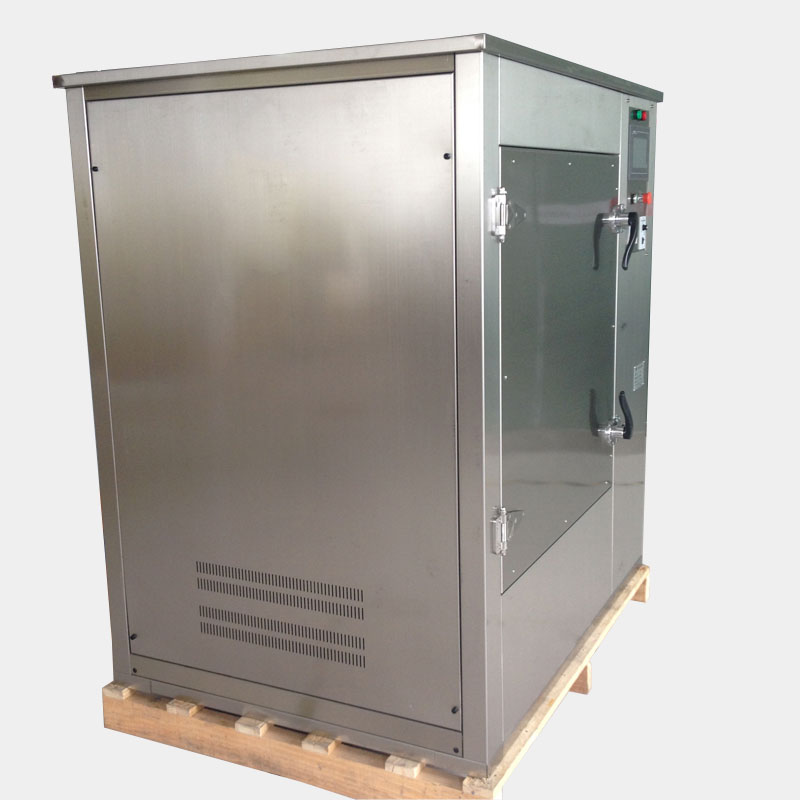

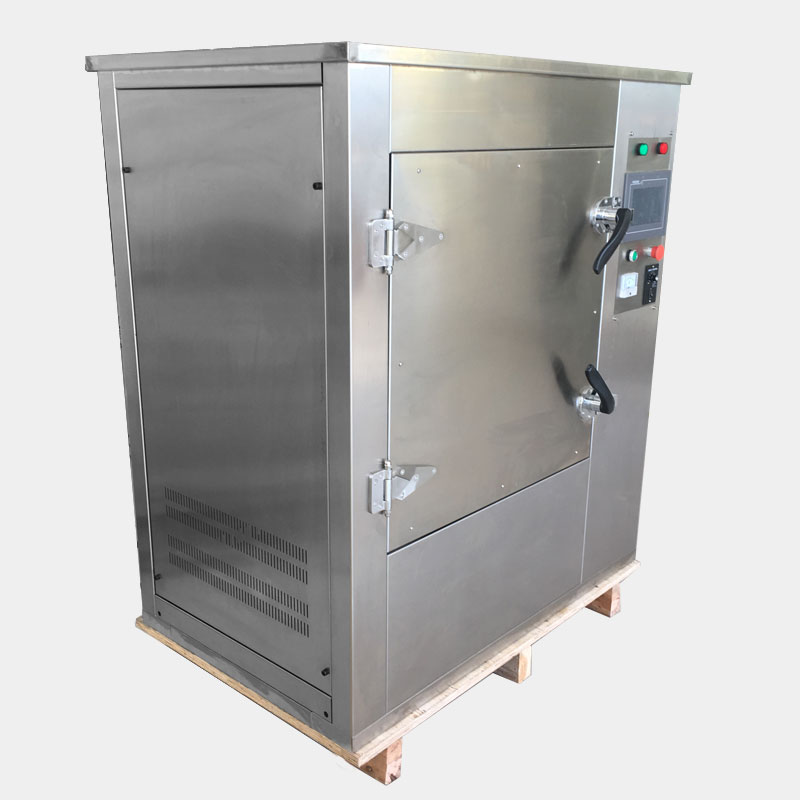

microwave drying machine for insects

  • Application:drying cricket/grasshopper/scorpions/tenebrio
  • Input voltage:220V±5%
  • Microwave frequency:2450±50 MHz
  • Microwave Input Power:6kw(MAX)
  • Control Method:SCM
  • Material:201 stainless steel
  • Cavity Dimension:750*715*750mm
  • Dimension:1160*745*1340mm
  • Weight:250KG

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now


This machine can be used to dry and sterilize insects,like cricket,grasshopper,scorpions,tenebrio etc.
It is very suitable for insect famers.


Item Model Number
Microwave magnetron LG 2M246-03TAG 6
Magnetron cooling fan AC12038 220V/17W 6
Driving Motor 5IK180RGU-CFW 1
Rotating trays #201 stainless steel bracket PTFE 6(single-deck/ double-deck)
PLC screen SIEMENS TPC7062KX(7 inches) 1
Moisture removal fan AC15050 220V / 52W AC130J1 220V/85A 2
LED light Model: CF-3XLW Power: 5W 1
Infrared thermometer Model: LT-05AW2012-A Temperature range: 0-500℃ 1
Ammeter Model: 85C1 Range: 5A 1

Main Product Parameters
Name Vegetable/fruit/food dehydrator oven
Type box type
Model X6
Microwave frequency 2450±50 MHz
Input voltage 220V±5%
Microwave Input power 6kw
Color of the oven Silver-white
Material of the oven Industrial stainless steel
Quantity of tray 6
Microwave leakage limit ≤5mw/cm2
Temperature 60-120 °C
Cooling method air
Weight 250 kg
Dimension 1160*745*1340mm
Cavity Size 750*715*750mm
Tray size 650*220*195mm
Installation area ≤3m2
