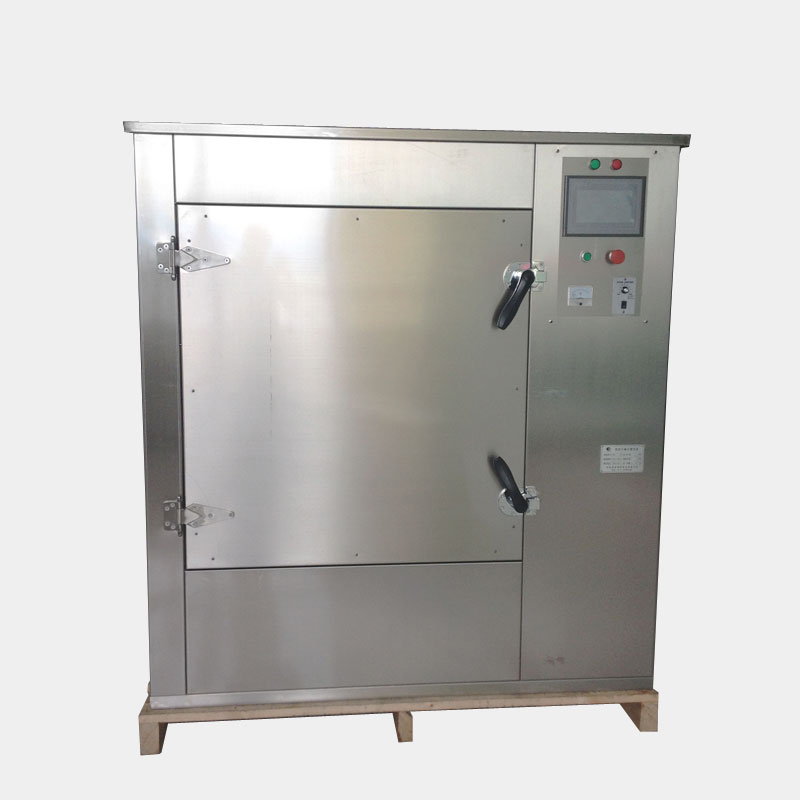

12kw Chinese Traditional Medicine Drying and Sterilization Industrial Microwave Oven

  • Name:Vegetable/fruit/food dehydrator oven
  • Type:box type
  • Model:X12
  • Microwave frequency:2450±50 MHz
  • Input voltage:380V±5%
  • Microwave power:12kw
  • Color of the oven:Silver-white
  • Material of the oven:Industrial stainless steel

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

WHY CHOOSE US:

12kw Chinese Traditional Medicine Drying and Sterilization Industrial Microwave Oven

1.Accessory brand: SIEMENS and other High quality brand
2.Technical support for your installation, operation and maintenance
3.Equipment material: Full steel construction, durable
4.Lifetime warranty
5.We can customize different dimension and specification according to the requirements of customers.

Product Parameters of 12kw Chinese Traditional Medicine Drying and Sterilization Industrial Microwave Oven:

Item Model Number
Microwave magnetron Korea LG 2M246-03 12
Magnetron cooling fan AC12038 220V/17W 12
Driving Motor 5IK180RGU-CFW 1
Rotating trays #201 stainless steel bracket PTFE 6(single-deck/ double-deck)
PLC screen SIEMENS TPC7062KX(7 inches) 1
Moisture removal fan AC15050 220V / 52W AC130J1 220V/85A 2
LED light Model: CF-3XLW Power: 5W 1
Infrared thermometer Model: LT-05AW2012-A Temperature range: 0-500℃ 1
Ammeter Model: 85C1 Range: 5A 1

Main Product Parameters

Name Vegetable/fruit/food dehydrator oven
Type box type
Model X12
Microwave frequency 2450±50 MHz
Input voltage 380V±5%
Microwave power 12kw
Color of the oven Silver-white
Material of the oven Industrial stainless steel
Quantity of tray 6
Microwave leakage limit ≤5mw/cm2
Temperature 60-120 °C
Cooling method air
Weight 220 kg
Dimension 1600( length)*1550(width)*1100(depth)mm
Cavity Size 960( length)*960(width)*960(depth)mm
Tray size 800( length)*294(width)*30(depth)mm
Installation area ≤3m2

Application:

12kw Chinese Traditional Medicine Drying and Sterilization Industrial Microwave Oven is used for various food products drying, sterilizing, curing, puffing etc., such as peanuts, walnuts, chestnut, sunflowers etc. nuts drying and roasting, vegetables dehydration, flowers drying etc., as well as spice drying and sterilizing, meat products drying, food puffing etc.
