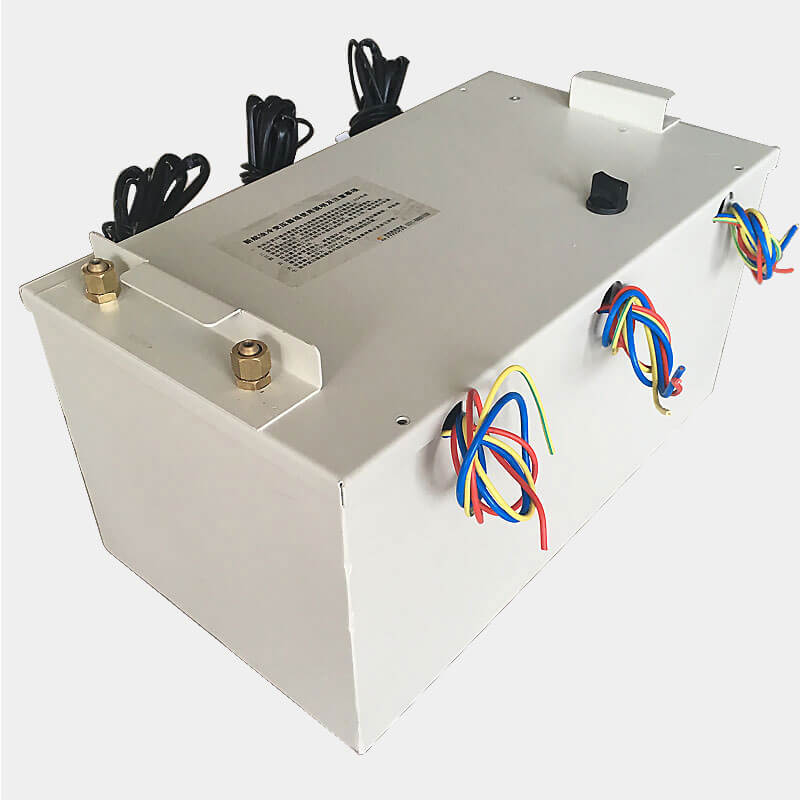

4x1000w Oil Immersed microwave invert power supply

  • Type:oil immersed microwave power supply
  • Application:Microwave drying and sterilization machine
  • Brand:Newsail
  • Model:LCEL-4x1000W
  • Material:integrated circulate plates + aluminum
  • Output power:4x1000W
  • Frequency:2450MHz
  • Input voltage:220V
  • Output voltage:3x4200V
  • Filament voltage:3.15V

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now


4x1000w Oil Immersed microwave invert power supply

Cooling way: oil cooling, air cooling
Dimension: 470mmx210mmx350mm
Weight without oil: 17Kgs
Oil: 10 kgs of 25# or 40# transformer oil
Henan Newsail hot sell 4x1000W oil immersed microwave power supply could match with 4 sets of magnetrons. Its power supply module could be variable frequency and fixed frequency.

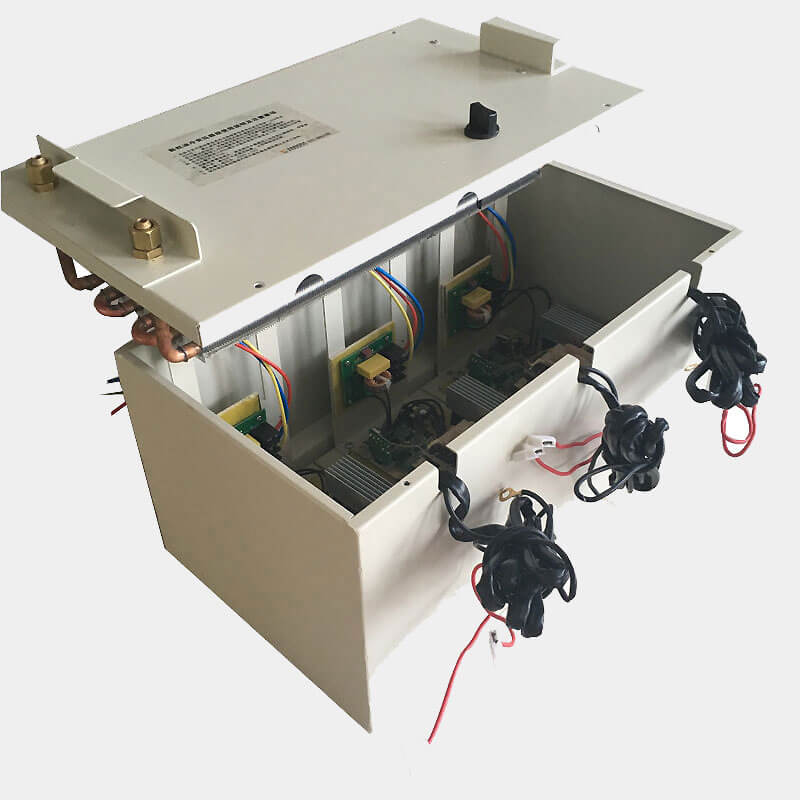

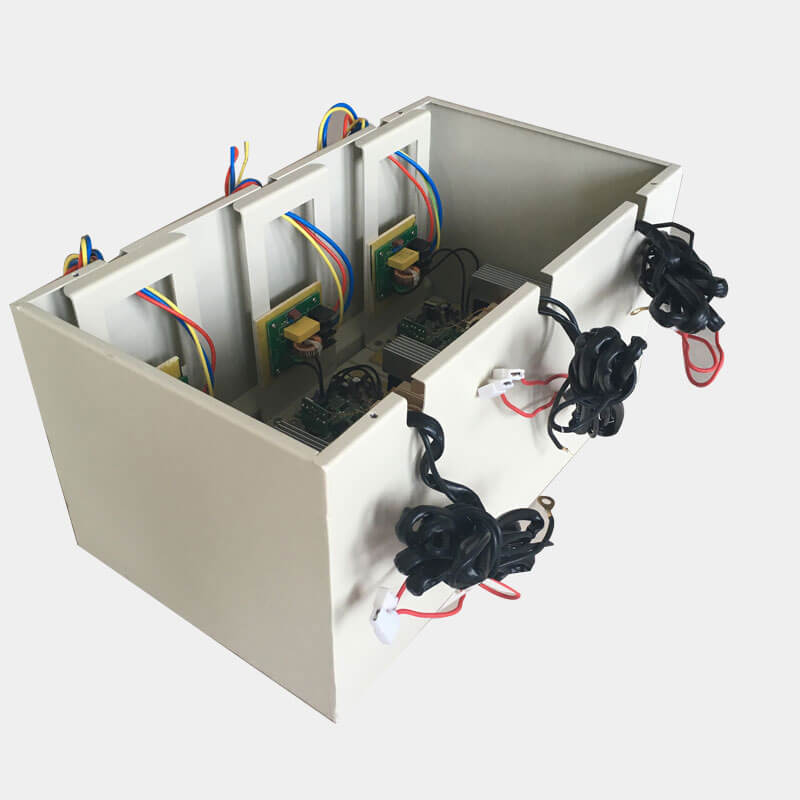

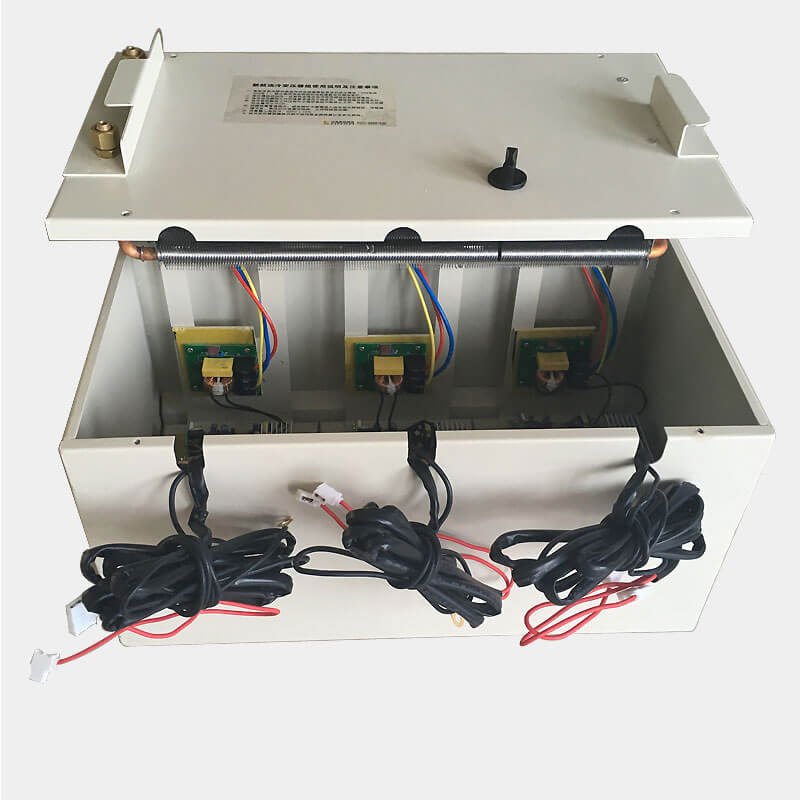

It adopt fixed terminal rows, and has function of moisture proof, corrosion resistance, and good conductivity. On the face panel, there are 4 red indicator lights. During maintenance, people can check its working status according to its flash times.
