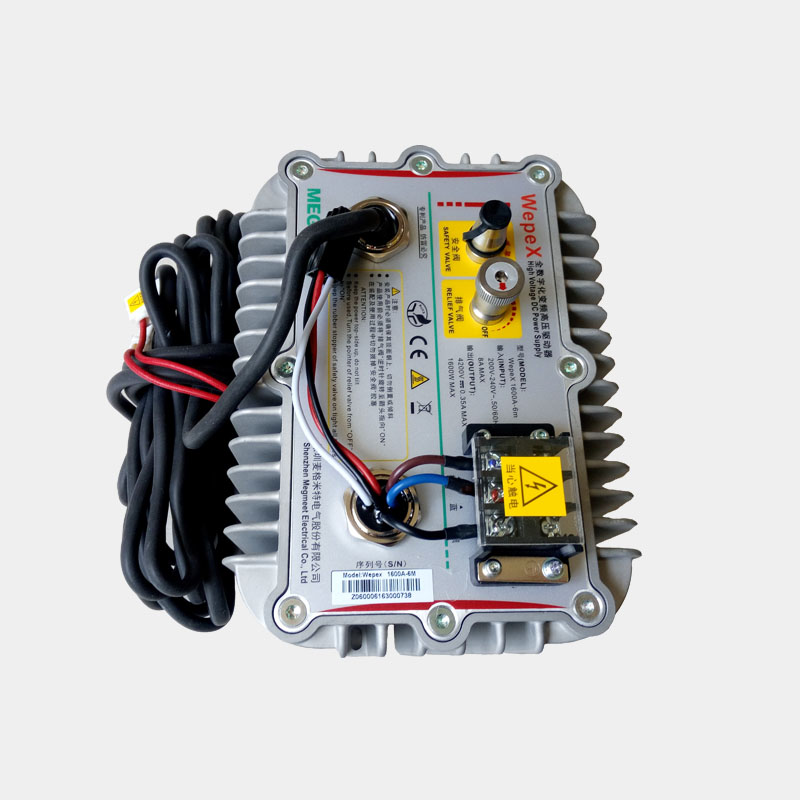

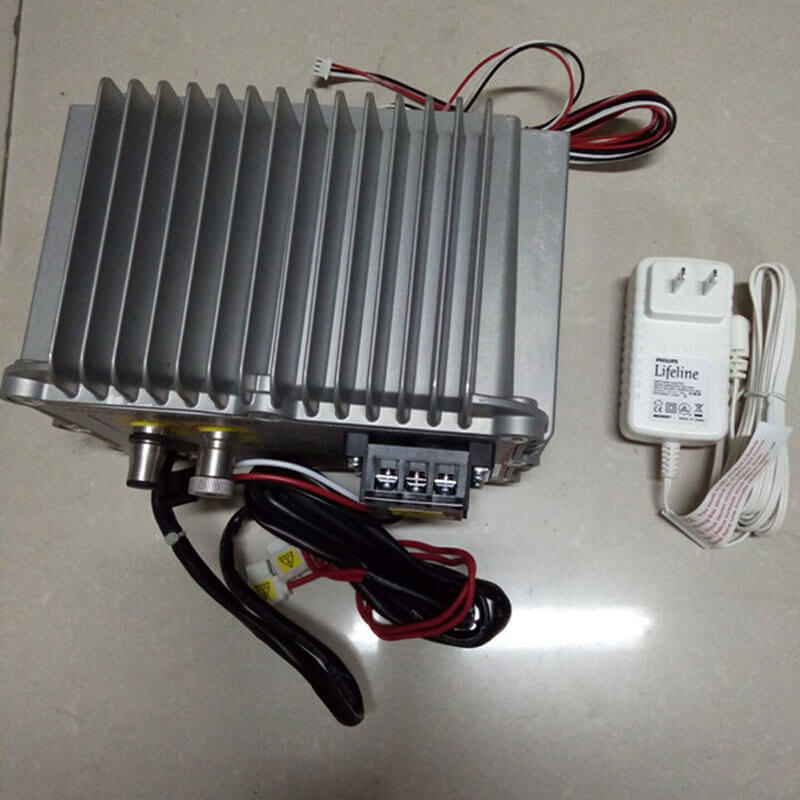

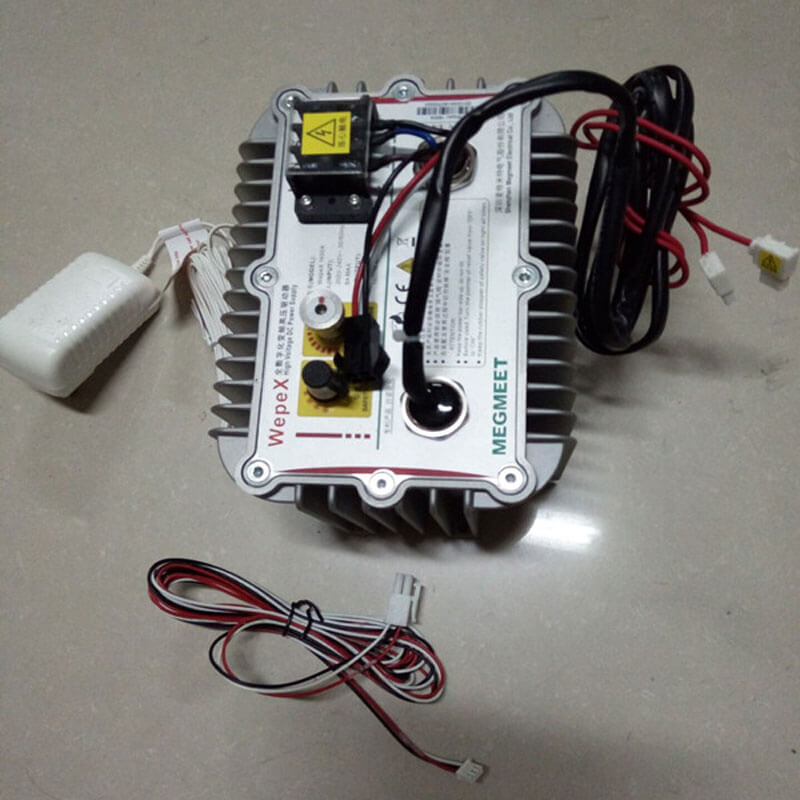

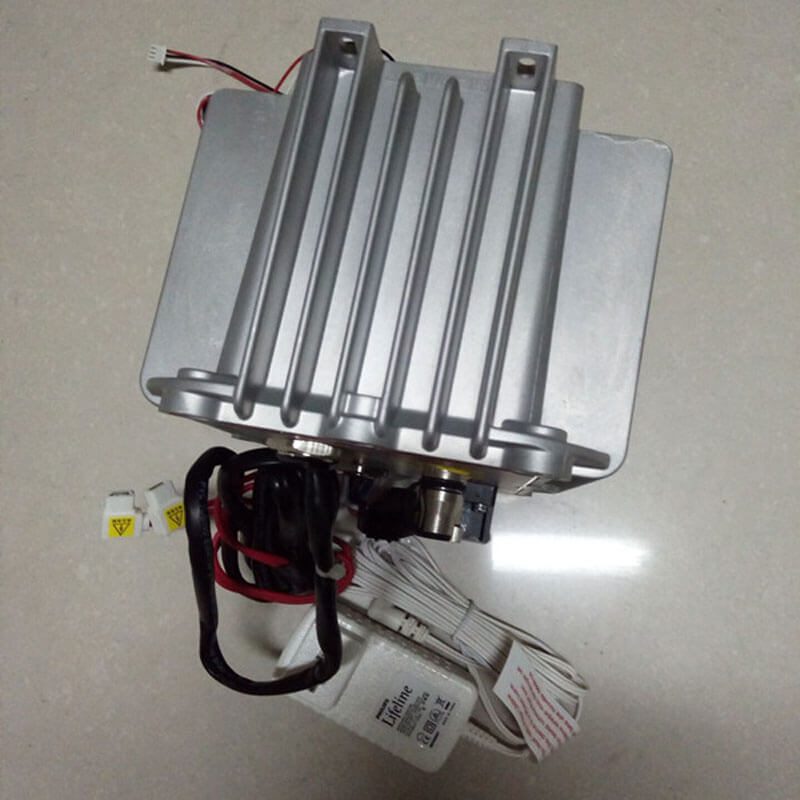

1500W Microwave Switching Power Supply Magnetron Inverter

Input voltage range:180Vac to 264Vac
Frequency range:47Hz-63Hz
Max input ac current:10A max. At full load condition
Leakage Current:Less Than 0.5mA@240Vac input
Max. Endure input voltage:300Vac
Rated Output Anode HV:4200Vdc
Rated Anode Output Current:360mA
Rated Filament Voltage:3.3V
Rated Filament Current:10A
Power of matched magnetron:1500W

We're here to help: Easy ways to get the answers you need.

Product Approval Sheet:

Product description: Industrial Microwave Equipment Inverter
Application: Industrial heater, dryness equipment

Revision History

Revision	Change Item	Date
1.0	Initial Release	2012-3-20
1.1	Add installation instruction	2012-9-25
1.2	Add filament specification	2013-1-23

Note:

This product has a backward compatible function, before the use of communication power function, you must first apply the communication signal to the inverter power supply, otherwise the product can only run at fixed 1250w input power.

Protection:

AC RMS OVP	275VAC
AC RMS UVP	165VAC
AC OCP	10A
OTP	88℃ typ
Arcing Protection	Y

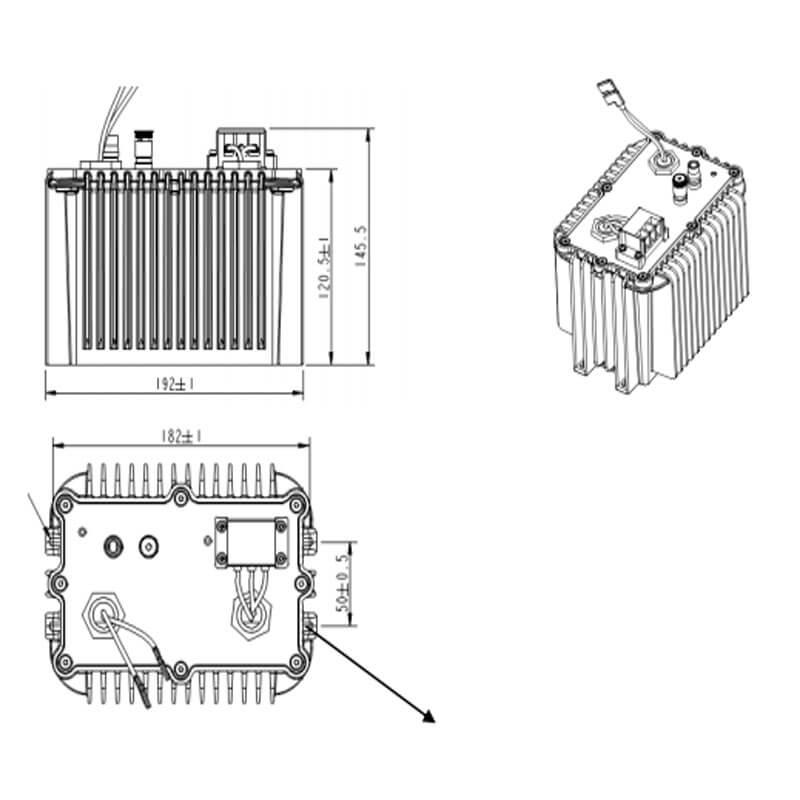

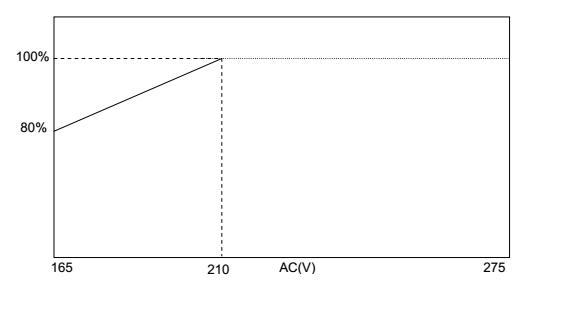

AC Voltage VS Output Power

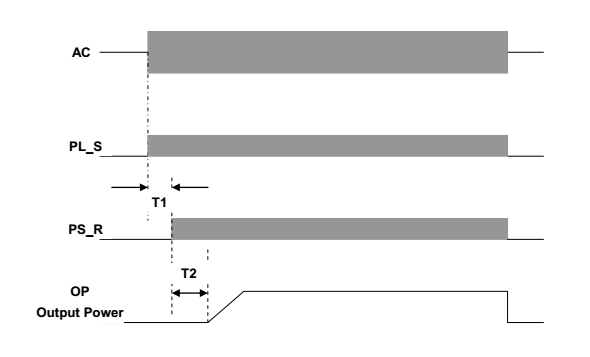

1. Power on Sequence
